Details:
Application: suitable for all kinds of weighing equipment. Packaging machinery industry, science and education equipment, school conventional equipment
Product range: 5KG 10KG 20KG
Features: HH8635YA weight sensor surface anodized treatment, silicone rubber sealing, corrosion resistance is good.
Installation dimension drawing (mm):
Technical specifications:
Rated output: 2.0± 0.2mv/v
Comprehensive accuracy: 1%F.S
Excitation voltage: 5~12V DC/
Zero output: 2%F.S
Non-linearity: 0.5%F.S
Hysteresis: plus or minus 0.5% F.S
Repeatability: 0.3%F.S
Creep: plus or minus 0.5% F.S
Safety overload: 120%F.S
Limit overload: 150%F.S
Temperature compensation scope: - 5 ℃ + 40 ℃
Operating temperature range: - 20 ℃ + 60 ℃
Zero temperature drift: 0.05%F.S
Sensitivity temperature drift: 0.05%F.S
Input resistance: 405 Ω + 10 Ω
Output value: 350 Ω + 5 Ω
Insulation resistance: p 5000 Ω (100 v DC)

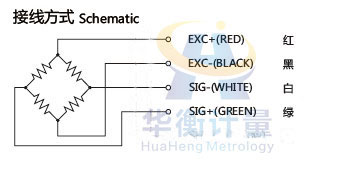

Cable color: red + black - green + white -
Remark:
1. If there are special requirements for the line length, it can be provided according to customer requirements
2. If the sensor size does not meet the requirements, it can be customized according to the customer's requirements
Huaheng measurement main business: measuring force sensor, weighing sensor, tension pressure sensor, measuring force control instrument, weight amplifier, measuring force meter to undertake non-standard measuring force weighing sensor custom force sensor of all kinds
Special notice: the product information is for reference only, subject to change without notice, please refer to the actual information.
