Pressure Sensor

HH8204L51GD

Product description: Sensor Pressure And Tension HH8204L51GD
INQUIRY

Features＆Applications
Tension and compression bidirectional,Small size
Small deformation,low height
High quality stainless steel
Easy to install,fast
Surface electrolytic corrosion protection
Suitadle for linited space automation equipment
force detection and control of small devices
Capacity:1KN 2KN 5KN 10KN 20KN

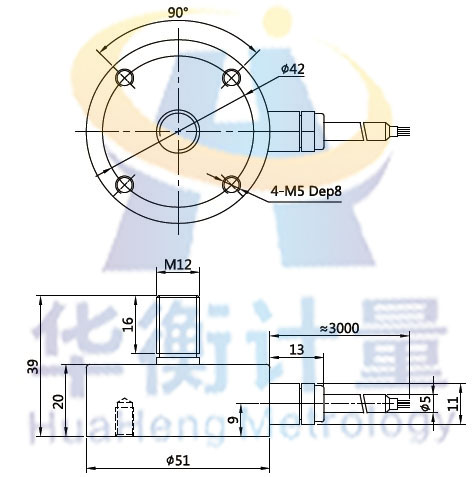

Product Size:

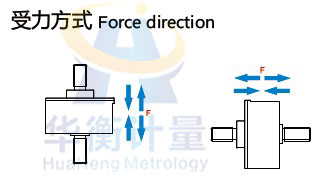

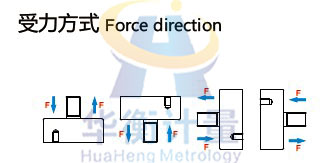

Force direction:

Specification:
Rated Output:1.0~2.0±0.2mv/v
Total Accuracy:≤0.5%of rated output
Excitation:5~8V DC/AC
Zero Balance:±2% of rated output
Nonlinearity:±0.5% of rated output
Hysterrsis:±0.5% of rated output
Repeatability:±0.3% of rated output
Creep(30min):±0.5% of rated output
Safe Overload:120%
Ultimate Overload:150%
Compensated Temp.range:-5℃to+40℃
Operating Temp.range:-5℃to+40℃
Temp.Shifr Zero:≤0.05% of rated output/℃
Temp.Shift Span:≤0.05% of rated output/℃
Input Resistance:380Ω+15Ω
Output Resistance:350Ω+10Ω
Insulation Resistance:≥5000MΩ(100V DC)
Ingress Protection:IP66
Cable Color:Red(E+) Black(E-) Green(S+) White(S-)

Schematic:

Product information is for reference only.subject to change without notice,the actual information shall prevail.
