Tension And Pressure Sensor

  • HH8204L13A
HH8204L13A

HH8204L13A

  • Product description: Tension and compression bidirectional
  • INQUIRY
Features&Applications
Tension and compression bidirectional,Small size
Small deformation,low height
High quality stainless steel
Easy to install,fast
Surface electrolytic corrosion protection
Suitadle for linited space automation equipment
force detection and control of small devices
Capacity:5KG 10KG 20KG  50KG

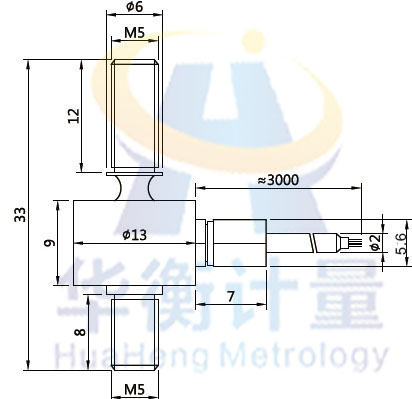

Product Size:

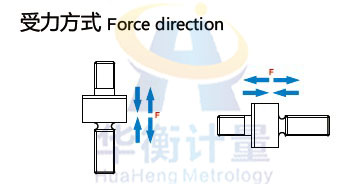

Force direction:


Specification:
Rated Output:1.0~2.0±0.2mv/v
Total Accuracy:≤0.5%of rated output
Excitation:5~8V DC/AC
Zero Balance:±2% of rated output
Nonlinearity:±0.5% of rated output
Hysterrsis:±0.5% of rated output
Repeatability:±0.3% of rated output
Creep(30min):±0.5% of rated output
Safe Overload:120%
Ultimate Overload:150%
Compensated Temp.range:-5℃to+40℃
Operating Temp.range:-5℃to+40℃
Temp.Shifr Zero:≤0.05% of rated output/℃
Temp.Shift Span:≤0.05% of rated output/℃
Input Resistance:350Ω+50Ω
Output Resistance:350Ω+50Ω
Insulation Resistance:≥5000MΩ(100V DC)
Ingress Protection:IP65
Cable Color:Red(E+)  Black(E-) Green(S+)  White(S-)

Schematic:


Product information is for reference only.subject to change without notice,the actua
