Torque sensor

  • HHDN02
HHDN02

HHDN02

  • Product description: Torsion sensor HHDN02
  • INQUIRY
Features&Applications
Dynamic torque sensor
Small deformation,low height
High quality stainless steel
Easy to install,fast
Surface electrolytic corrosion protection
Suitadle for linited space automation equipment
force detection and control of small devices
Capacity:10N.M 20N.M 30N.M 50N.M 100N.M

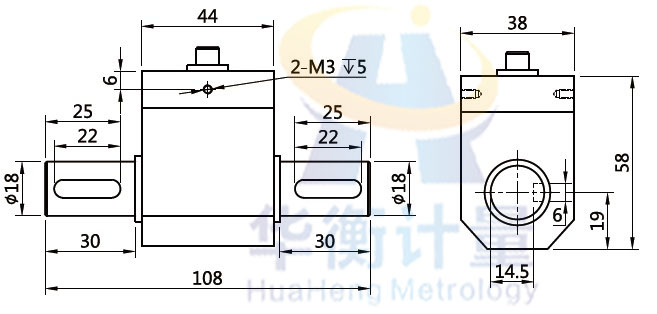

Product Size:


Force direction:


Specification:
Rated Output:1.0~2.0±0.2mv/v
Total Accuracy:≤0.5%of rated output
Excitation:10~12V DC/AC
Zero Balance:±2% of rated output
Nonlinearity:±0.5% of rated output
Hysterrsis:±0.5% of rated output
Repeatability:±0.3% of rated output
Creep(30min):±0.5% of rated output
Safe Overload:120%
Ultimate Overload:150%
Compensated Temp.range:-5℃to+40℃
Operating Temp.range:-5℃to+40℃
Temp.Shifr Zero:≤0.05% of rated output/℃
Temp.Shift Span:≤0.05% of rated output/℃
Input Resistance:350Ω+15Ω/700Ω+15Ω
Output Resistance:350Ω+10Ω/700Ω+15Ω
Insulation Resistance:≥5000MΩ(100V DC)
Ingress Protection:IP65
Cable Color:Red(E+)  Black(E-) Green(S+)  White(S-)

Schematic:


Product information is for reference only.subject to change without notice,the actual information shall prevail.
