HH9801 side pressure tension sensor
Application: widely used in ship, dock, crane industry
Range specification: 1T(500KG) 2T(1T) 5T(2T) 10T(5T) 20T(10T)
Features: HH9801 side pressure tension sensor elastomer using high-quality stainless steel materials, designed for testing the tension of steel wire rope, with high reliability, good interchangeability, easy to use and other characteristics

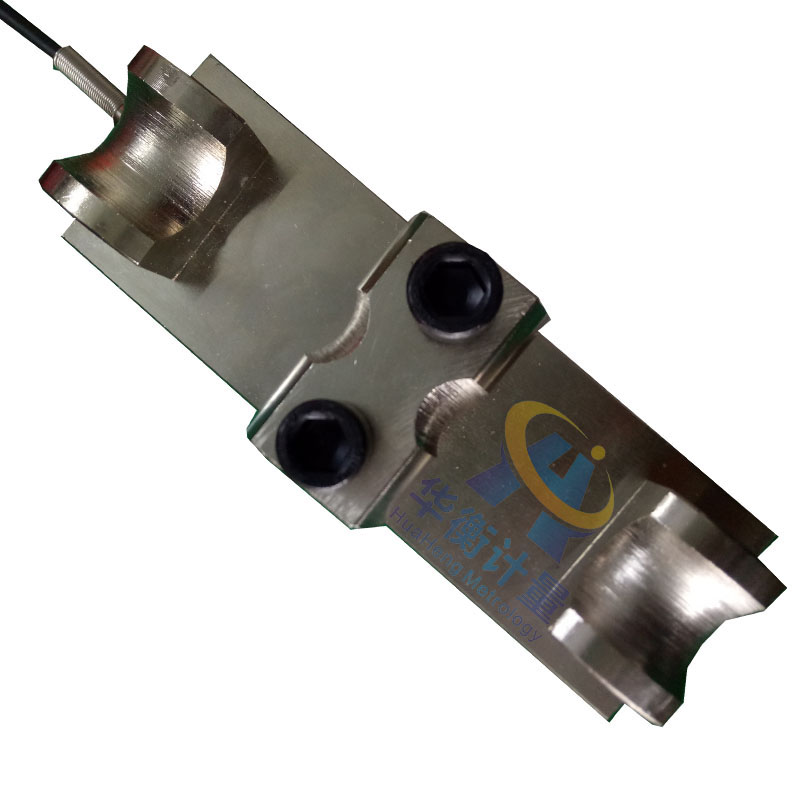

Product pictures:
Technical parameters:
Comprehensive accuracy: 1%
Sensitivity: 2.0MV/V
Supply voltage: 12, 24 DC
Creep: + / - 0.02 ~ 0.03% F.S / 30 min
Zero output: 1%F.S
Zero temperature effect: + / - 0.02 ~ 0.03% F.S / 10 ℃
Output temperature effect: + / - 0.02 ~ 0.03% F.S / 10 ℃
Working temperature: - 20 ℃ ~ + 70 ℃
Input resistance: 380 Ω
The output resistance: 350 Ω
Insulation resistance: 5000 m Ω
Safety overload: 150%F.S
Cable color: red + black - yellow + white -
Remark:
1. If there are special requirements for the line length, it can be provided according to customer requirements
2. If the sensor size does not meet the requirements, it can be customized according to the customer's requirements
Huaheng measurement main business: measuring force sensor, weighing sensor, tension pressure sensor, measuring force control instrument, weight amplifier, measuring force meter to undertake non-standard measuring force weighing sensor custom force sensor of all kinds
Special notice: the product information is for reference only, subject to change without notice, please refer to the actual information.
