HHB800 weight control instrument
Application: used in chemical industry, iron and steel, grain, logistics, feed metallurgy, etc
Features: the product has automatic zero return tracking and zero return, compact shape, (shape size: 96MMX48MM)
Fully functional, price concessions, suitable for portable and embedded installation.Real - time display of peak value, upper limit and lower limit
Technical specifications:
Built in output interface: basic configuration RS232 serial port RS485 serial port 20MA current loop serial port
Opening size: 92MMX45MM
Bridge power supply voltage: 9V, maximum current 500MA
Output: two-way relay load 10A/250V or 10A/30V
Frequency: 50HZ/60HZ or DC24V
Customizable optocoupler output
Equipped with analog voltage 0~5V voltage 0~10V current 4~20MA

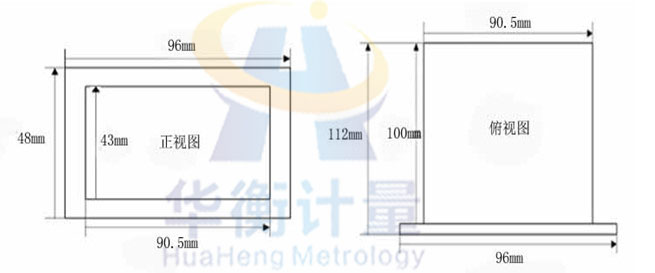

Installation dimension drawing (unit MM):
Hua heng measurement main business: force sensor, weighing sensor, tension pressure sensor, force measurement control instrument, weight amplifier, force meter
To undertake non - standard force weighing sensor custom force sensor of all kinds
Special notice: the product information is for reference only, subject to change without notice, please refer to the actual information.
