Weight transmitter

  • HH802EN


  • Product description: Weight transmitter HH802EN

Weight transmitter HH802EN

The main application and PLC microcontroller central control program automation programming, stable quality and reliable quality

Two levels of dual stabilized electronic filtering are added to ensure power supply interference in harsh environments

Power supply: AC12V~24V DC16V~30V

Dual output (can be connected with two weighing force sensors)

AD sampling rate: 40SPS

High speed resolution up to 5000HZ

Output range: 0~5v 0~10v 4~20MA(specifications optional)

Comprehensive accuracy: better than 0.05%

Resolution: 16 bits

Power consumption: 25ma@1 350 ohm sensor

Linear output: better than 0.02% (0.1%)

Shell material: aluminum alloy

Enclosure protection grade: IP64

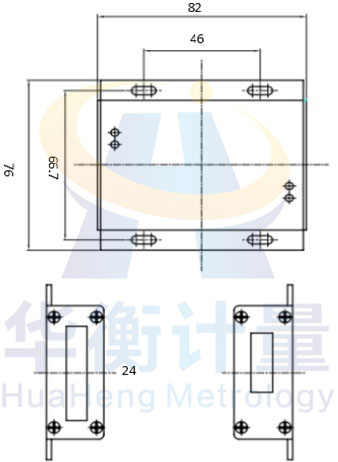

Overall dimensions:


1. If there are special requirements for the line length, it can be provided according to customer requirements

2. If the sensor size does not meet the requirements, it can be customized according to the customer's requirements

Huaheng measurement main business: measuring force sensor, weighing sensor, tension pressure sensor, measuring force control instrument, weight amplifier, measuring force meter to undertake non-standard measuring force weighing sensor custom force sensor of all kinds

Special notice: the product information is for reference only, subject to change without notice, please refer to the actual information.
